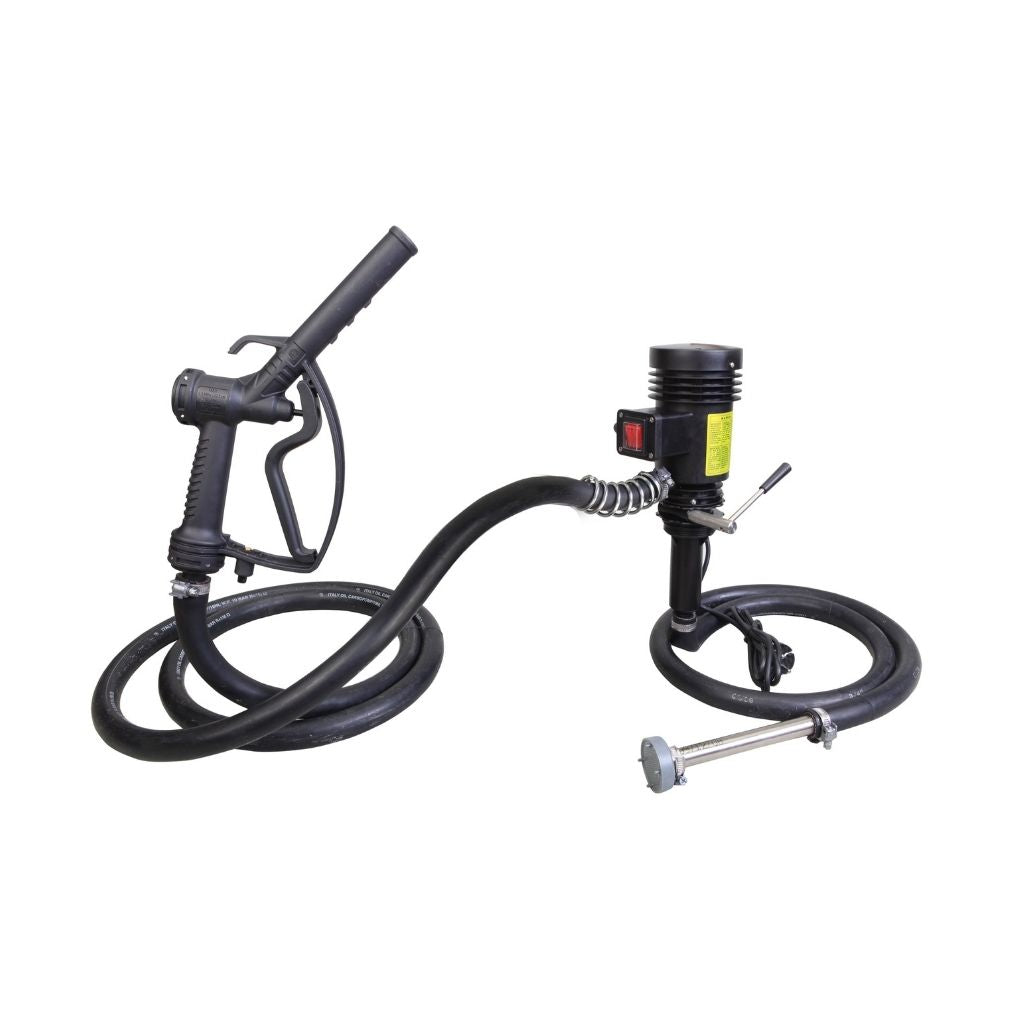

Electric Fuel and Oil Pump

Available in 230V AC, 12V DC, 110V AC, or 24V DC - 9.25 or 10.5 GPM

The Groz Electric Oil and Fuel Pump is designed for fluid transfer within vertical setups in industries light industrial, automotive, heating, or marine. Manufactured from chemically inert materials, these pumps work with a wide variety of low viscosity media. The pump motor has double insulation for safe use with water & emulsions. Its built-in anti-siphoning system ensures media doesn't flow out by siphon action causing accidental damage to the delivery hose or the dispensing nozzle.

This pump comes with built-in bung adapter that directly fits on drums with 2" threaded openings, enabling it to be used with 15 to 55 gallon (50 to 205 liter) drums alongside its 2 piece threaded suction tube.

Available in four variants:

  • 230V AC – 45520
  • 12V DC – 45521
  • 110V AC – 45522
  • 24V DC – 45523

For Use with:

Diesel, Kerosene, Mineral & Synthetic Oils, Heating Oils, Antifreeze, Water, Emulsions, etc. Pump can be used with Fluids with a maximum viscosity of 114 cst

Wetted Components:

POM, Polypropylene, Stainless Steel, Nitrile Rubber, Viton & PTFE

Specifications — 110V AC (SKU 45522)

  • Power: 110V AC, 60Hz
  • Flow Rate: Up to 10.5 GPM (40 LPM)
  • Duty Cycle: Continuous Duty
  • Motor: 0.43 HP Centrifugal Motor
  • Amp Draw: 2.9 Amp
  • Absorbed Power: 320 W
  • Internal Bypass Valve: No
  • Discharged Head: 1 Meter
  • Telescopic Suction Tube: Extends 31-1/2" to 43-45/64" (800mm to 1110mm)
  • Delivery Hose: 2.5 Meters x 3/4" ID

Other voltage variants (230V AC, 12V DC, 24V DC) have their own spec sheets shown below.

Groz Electric Fuel and Oil Pump 230V AC specifications

Groz Electric Fuel and Oil Pump 12V DC specifications

Groz Electric Fuel and Oil Pump 110V AC specifications: 10.5 GPM flow rate, 2.9 amp, 0.43 HP motor

Groz Electric Fuel and Oil Pump 24V DC specifications

Electric Fuel and Oil Pump
Available in 230V AC, 12V DC, 110V AC, or 24V DC - 9.25 or 10.5 GPM

The Groz Electric Oil and Fuel Pump is designed for fluid transfer within vertical setups in industries light industrial, automotive, heating, or marine. Manufactured from chemically inert materials, these pumps work with a wide variety of low viscosity media. The pump motor has double insulation for safe use with water & emulsions. Its built-in anti-siphoning system ensures media doesn't flow out by siphon action causing accidental damage to the delivery hose or the dispensing nozzle.

This pump comes with built-in bung adapter that directly fits on drums with 2" threaded openings, enabling it to be used with 15 to 55 gallon (50 to 205 liter) drums alongside its 2 piece threaded suction tube.

Available in four variants:

  • 230V AC – 45520
  • 12V DC – 45521
  • 110V AC – 45522
  • 24V DC – 45523

For Use with:

Diesel, Kerosene, Mineral & Synthetic Oils, Heating Oils, Antifreeze, Water, Emulsions, etc. Pump can be used with Fluids with a maximum viscosity of 114 cst

Wetted Components:

POM, Polypropylene, Stainless Steel, Nitrile Rubber, Viton & PTFE

Specifications — 110V AC (SKU 45522)

  • Power: 110V AC, 60Hz
  • Flow Rate: Up to 10.5 GPM (40 LPM)
  • Duty Cycle: Continuous Duty
  • Motor: 0.43 HP Centrifugal Motor
  • Amp Draw: 2.9 Amp
  • Absorbed Power: 320 W
  • Internal Bypass Valve: No
  • Discharged Head: 1 Meter
  • Telescopic Suction Tube: Extends 31-1/2" to 43-45/64" (800mm to 1110mm)
  • Delivery Hose: 2.5 Meters x 3/4" ID

Other voltage variants (230V AC, 12V DC, 24V DC) have their own spec sheets shown below.

Groz Electric Fuel and Oil Pump 230V AC specifications

Groz Electric Fuel and Oil Pump 12V DC specifications

Groz Electric Fuel and Oil Pump 110V AC specifications: 10.5 GPM flow rate, 2.9 amp, 0.43 HP motor

Groz Electric Fuel and Oil Pump 24V DC specifications
