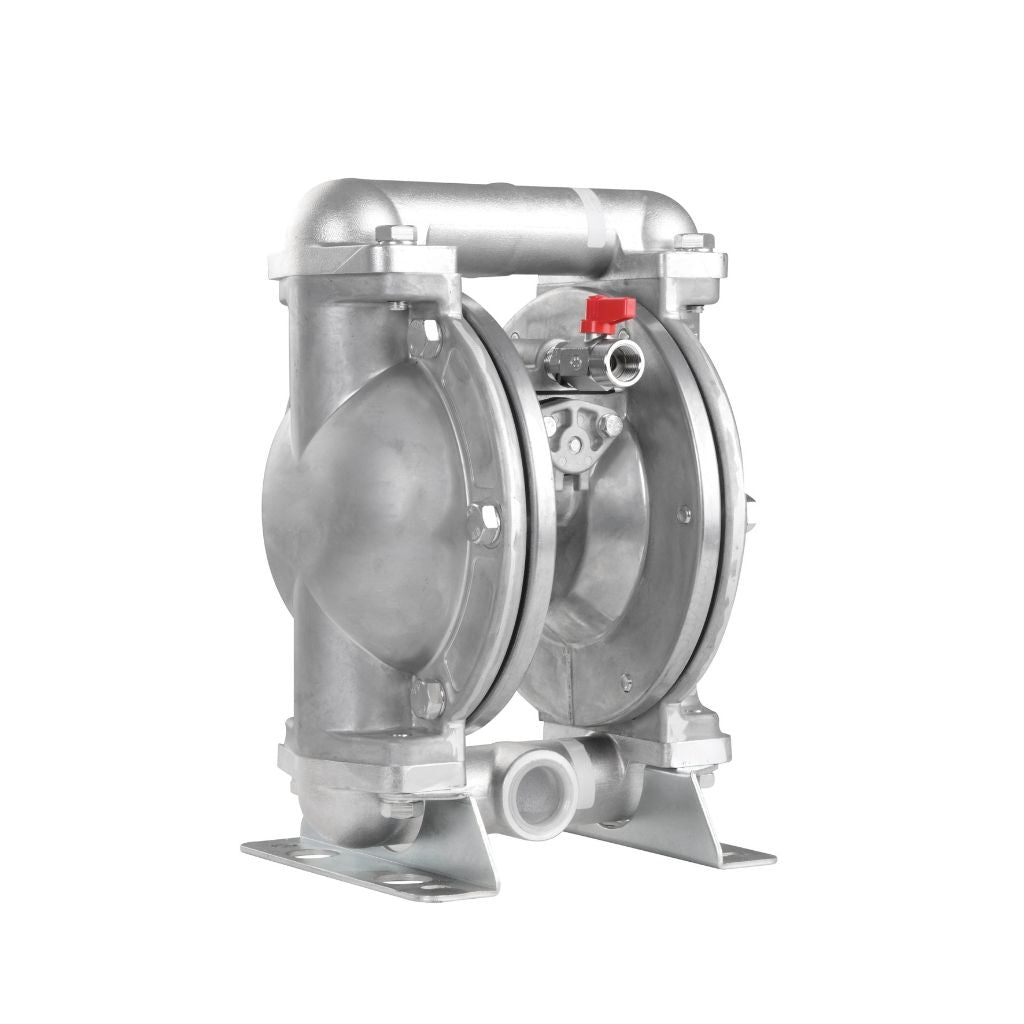

Air Operated Double Diaphragm Pump

Aluminum casing and Hytrel diaphragm

GROZ Air Operated Double Diaphragm Pumps are engineered with fewer parts for large-volume transfer with high performance and reliability. Driven by compressed air, they transfer clean and particle-laden fluids such as waste oil in industrial, automotive, chemical processing, oil and gas, and marine applications.

The self-priming design with internal check valves gives high suction lift even at dry start-up and with heavy fluids. It can run dry with no risk of damage, and flow rate and discharge pressure are variable. The pump is portable and needs no complex controls. The fully bolted design makes repairs fast.

Specifications

  • Size: 1"
  • Flow rate: Up to 37 GPM (140 LPM)
  • Discharge per cycle: Up to 600 ml
  • Fluid inlet / outlet: 1" NPT (F)
  • Air inlet: 3/8"
  • Air inlet pressure: 29-100 PSI (2-7 bar)
  • Max particle size: 1/8" (3 mm)
  • Casing: Aluminum
  • Diaphragm: Hytrel
  • Dimensions: 10 x 10 x 12-3/8" (257 x 257 x 315 mm)
  • Brand / SKU: GROZ 44745

GROZ 44745 air operated double diaphragm pump specifications: 1 inch, 37 GPM, 29-100 PSI air, aluminum, Hytrel

GROZ 44745 air diaphragm pump details

Air Operated Double Diaphragm Pump

Aluminum casing and Hytrel diaphragm

GROZ Air Operated Double Diaphragm Pumps are engineered with fewer parts for large-volume transfer with high performance and reliability. Driven by compressed air, they transfer clean and particle-laden fluids such as waste oil in industrial, automotive, chemical processing, oil and gas, and marine applications.

The self-priming design with internal check valves gives high suction lift even at dry start-up and with heavy fluids. It can run dry with no risk of damage, and flow rate and discharge pressure are variable. The pump is portable and needs no complex controls. The fully bolted design makes repairs fast.

Specifications

  • Size: 1"
  • Flow rate: Up to 37 GPM (140 LPM)
  • Discharge per cycle: Up to 600 ml
  • Fluid inlet / outlet: 1" NPT (F)
  • Air inlet: 3/8"
  • Air inlet pressure: 29-100 PSI (2-7 bar)
  • Max particle size: 1/8" (3 mm)
  • Casing: Aluminum
  • Diaphragm: Hytrel
  • Dimensions: 10 x 10 x 12-3/8" (257 x 257 x 315 mm)
  • Brand / SKU: GROZ 44745

GROZ 44745 air operated double diaphragm pump specifications: 1 inch, 37 GPM, 29-100 PSI air, aluminum, Hytrel

GROZ 44745 air diaphragm pump details
