Automatic Shut-Off Fuel Nozzle, UL Listed — 3/4" Straight with Swivel, 1" Curved with Swivel, or 3/4" Curved
Automatic Shut-Off Fuel Nozzle, UL Listed — 3/4" Straight with Swivel, 1" Curved with Swivel, or 3/4" Curved
GROZ USA

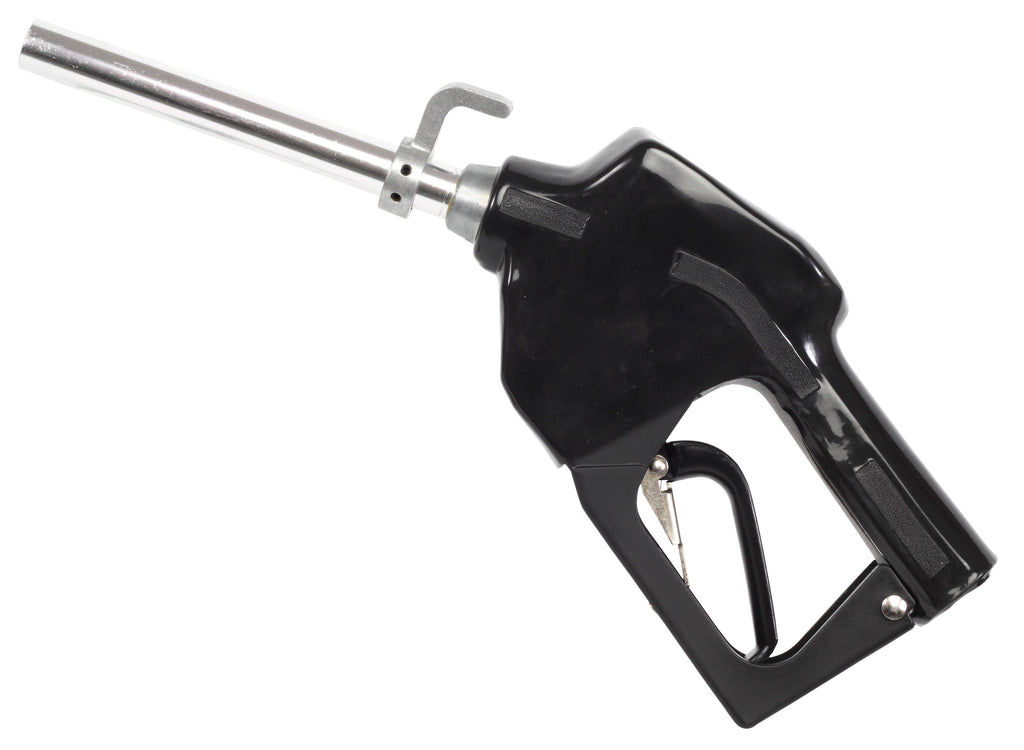

Automatic Fuel Control Nozzle
GROZ Automatic Fuel Control Nozzles are designed for use with electric fuel pumps for diesel, kerosene, and leaded and unleaded gasoline. A sensor built into the discharge spout automatically stops flow once the fuel level in the tank reaches the tip of the spout.
The heavy-duty nozzle body is cast aluminum, wrapped with protective black vinyl along with the handle. The trigger and guard are covered in black thermoplastic. All models are UL listed, with a maximum working pressure of 50 PSI.
Specifications by Model
Spec
45573
45575
45576
Inlet thread
3/4" NPT (F)
1" NPT (F)
3/4" NPT (F)
Spout type
Straight
Curved, with spring
Curved, with spring
Swivel
Yes
Yes
No
Flow rate
15.87 GPM (60 LPM)
26.45 GPM (100 LPM)
15.87 GPM (60 LPM)
Spout OD / ID
13/16" (21 mm) / 17 mm
1-1/16" (27 mm) / 21 mm
13/16" (21 mm) / 16 mm
Spout length
7" (180 mm)
5-1/2" (140 mm)
6.3" (160 mm)
Wetted components
Aluminum, Viton, steel
Aluminum, Viton, steel
Aluminum, Viton
Common Specifications
Type: Automatic shut-off fuel nozzle
Certification: UL Listed
Max working pressure: 50 PSI
Recommended use: Diesel, kerosene, leaded and unleaded gasoline
Body: Cast aluminum with protective vinyl cover
Sale
Automatic Shut-Off Fuel Nozzle, UL Listed — 3/4" Straight with Swivel, 1" Curved with Swivel, or 3/4" Curved
Sale
-
FAST SHIPPING
-
100% ORIGINAL AND QUALITY
-
EASY RETURNS 30 days for free returns
Automatic Fuel Control Nozzle
GROZ Automatic Fuel Control Nozzles are designed for use with electric fuel pumps for diesel, kerosene, and leaded and unleaded gasoline. A sensor built into the discharge spout automatically stops flow once the fuel level in the tank reaches the tip of the spout.
The heavy-duty nozzle body is cast aluminum, wrapped with protective black vinyl along with the handle. The trigger and guard are covered in black thermoplastic. All models are UL listed, with a maximum working pressure of 50 PSI.
Specifications by Model
| Spec | 45573 | 45575 | 45576 |
|---|---|---|---|
| Inlet thread | 3/4" NPT (F) | 1" NPT (F) | 3/4" NPT (F) |
| Spout type | Straight | Curved, with spring | Curved, with spring |
| Swivel | Yes | Yes | No |
| Flow rate | 15.87 GPM (60 LPM) | 26.45 GPM (100 LPM) | 15.87 GPM (60 LPM) |
| Spout OD / ID | 13/16" (21 mm) / 17 mm | 1-1/16" (27 mm) / 21 mm | 13/16" (21 mm) / 16 mm |
| Spout length | 7" (180 mm) | 5-1/2" (140 mm) | 6.3" (160 mm) |
| Wetted components | Aluminum, Viton, steel | Aluminum, Viton, steel | Aluminum, Viton |
Common Specifications
- Type: Automatic shut-off fuel nozzle
- Certification: UL Listed
- Max working pressure: 50 PSI
- Recommended use: Diesel, kerosene, leaded and unleaded gasoline
- Body: Cast aluminum with protective vinyl cover
Automatic Fuel Control Nozzle
GROZ Automatic Fuel Control Nozzles are designed for use with electric fuel pumps for diesel, kerosene, and leaded and unleaded gasoline. A sensor built into the discharge spout automatically stops flow once the fuel level in the tank reaches the tip of the spout.
The heavy-duty nozzle body is cast aluminum, wrapped with protective black vinyl along with the handle. The trigger and guard are covered in black thermoplastic. All models are UL listed, with a maximum working pressure of 50 PSI.
Specifications by Model
| Spec | 45573 | 45575 | 45576 |
|---|---|---|---|
| Inlet thread | 3/4" NPT (F) | 1" NPT (F) | 3/4" NPT (F) |
| Spout type | Straight | Curved, with spring | Curved, with spring |
| Swivel | Yes | Yes | No |
| Flow rate | 15.87 GPM (60 LPM) | 26.45 GPM (100 LPM) | 15.87 GPM (60 LPM) |
| Spout OD / ID | 13/16" (21 mm) / 17 mm | 1-1/16" (27 mm) / 21 mm | 13/16" (21 mm) / 16 mm |
| Spout length | 7" (180 mm) | 5-1/2" (140 mm) | 6.3" (160 mm) |
| Wetted components | Aluminum, Viton, steel | Aluminum, Viton, steel | Aluminum, Viton |
Common Specifications
- Type: Automatic shut-off fuel nozzle
- Certification: UL Listed
- Max working pressure: 50 PSI
- Recommended use: Diesel, kerosene, leaded and unleaded gasoline
- Body: Cast aluminum with protective vinyl cover
Return Policy
30-Day Satisfaction Guarantee
Return Policy, Limited Warranty and Limitation of Liability
If you are not satisfied for any reason products may be returned within 30 days of shipment for a full credit or exchange (provided the product is undamaged). Return documentation should clearly specify credit or exchange. Returned items must be in the original packaging. All returns must include a return authorization (RA) number that can be obtained by contacting Groz USA Customer Service Department at 1-888-685-2916. Our customer service hours are Monday through Friday from 8:00 a.m. to 5:00 p.m. (CST). Include a copy of the original order confirmation or packing slip with your RA paperwork as proof of purchase. Returns received without a RA number may be assessed a 15% restocking (processing) fee that will be deducted from any credit due.
Return Policy, Limited Warranty and Limitation of Liability
If you are not satisfied for any reason products may be returned within 30 days of shipment for a full credit or exchange (provided the product is undamaged). Return documentation should clearly specify credit or exchange. Returned items must be in the original packaging. All returns must include a return authorization (RA) number that can be obtained by contacting Groz USA Customer Service Department at 1-888-685-2916. Our customer service hours are Monday through Friday from 8:00 a.m. to 5:00 p.m. (CST). Include a copy of the original order confirmation or packing slip with your RA paperwork as proof of purchase. Returns received without a RA number may be assessed a 15% restocking (processing) fee that will be deducted from any credit due.
Shipping Policy
No shipping and handling are charged to customers for standard ground delivery on orders of $75 or more before tax. Shipping Policy Exceptions: Not all products qualify for the above Shipping Policy. Additionally, standard shipping rates will apply for all orders to Alaska and Hawaii. Any charges incurred for hazardous materials or other special handling by the carrier must be paid by the customer. If you have any questions, please call our customer service department at 1-888-685-2916
Frequently Asked Questions
How does the automatic shut-off work?
A sensor built into the spout tip stops flow automatically when the fuel level in the tank reaches the tip of the spout, which helps prevent overfills. Maximum working pressure is 50 PSI.
What fuels are these nozzles rated for?
Diesel, kerosene, and leaded and unleaded gasoline. All three models are UL listed and are designed for use with electric fuel pumps.
Which automatic nozzle should I choose?
45573: 3/4 in. NPT inlet, straight 7 in. spout, swivel, up to 15.87 GPM. 45575: 1 in. NPT inlet, curved 5-1/2 in. spout with spring, swivel, up to 26.45 GPM for high-flow pumps. 45576: 3/4 in. NPT inlet, curved 6.3 in. spout with spring, no swivel, up to 15.87 GPM.
Where is this made?
GROZ products are manufactured in India by GROZ Engineering Tools, a tool manufacturer founded in 1976 with ISO 9001 certified facilities. GROZ USA, based in Wood Dale, Illinois, supports customers across North America.
Can I return it if it's not right for me?
Yes. Undamaged products in their original packaging can be returned within 30 days of shipment for a full credit or exchange. Call (888) 685-2916 first to get a Return Authorization (RA) number, and include a copy of your order confirmation or packing slip.
